CR-09高壓離心風機
產品分類：高壓離心風機
點擊次數：833 次
上架時間：2021-12-16 11:26
全國服務熱線：020-84913508 / 020-84918260
我要詢價詳細介紹

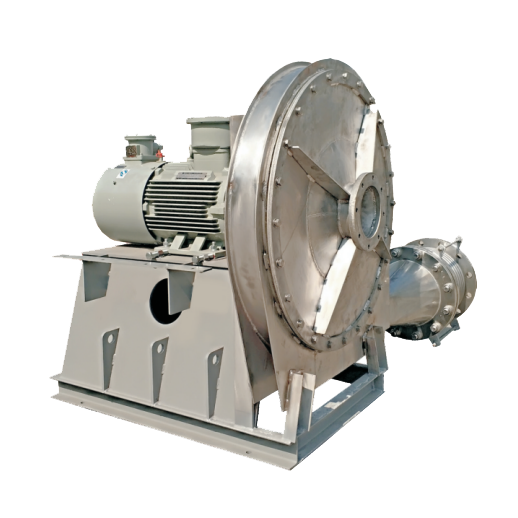

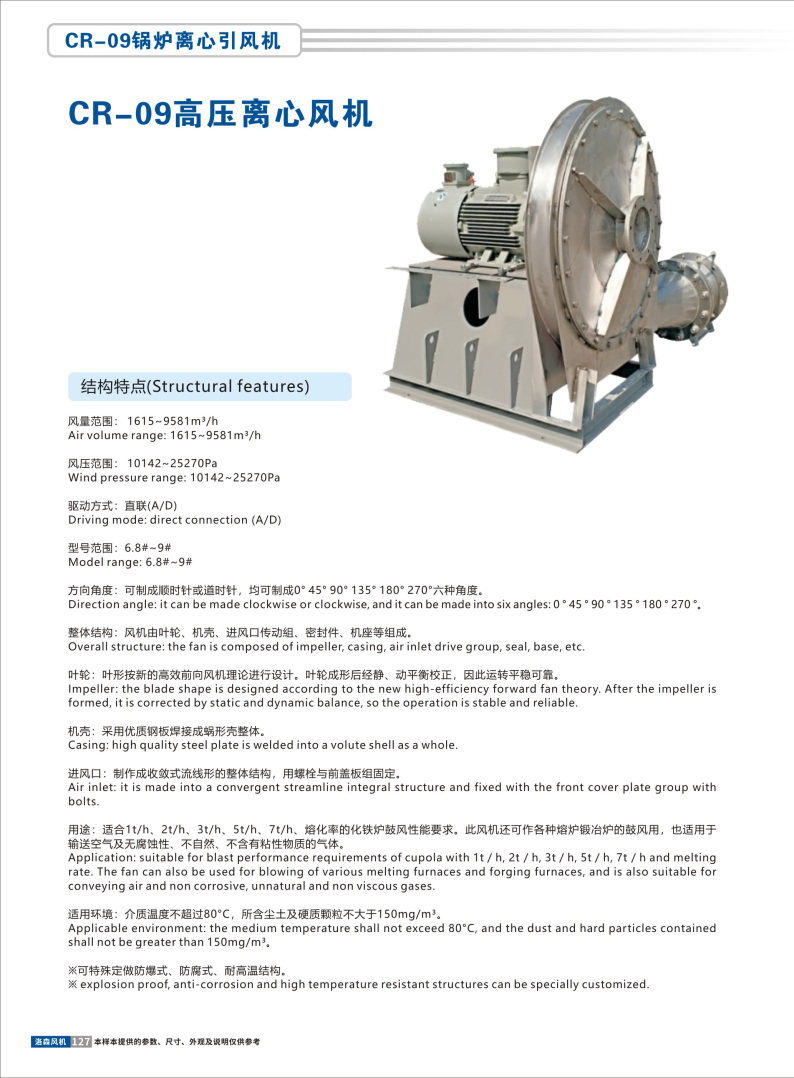

CR-09高壓離心風機
風量范圍： 1615~9581m3/h
Air volume range: 1615~9581m3/h
風壓范圍： 10142~25270Pa
Wind pressure range: 10142~25270Pa
驅動方式：直聯(A/D)
Driving mode: direct connection (A/D)
型號范圍：6.8#~9#
Model range: 6.8#~9#
方向角度：可制成順時針或道時針，均可制成0° 45° 90° 135° 180° 270°六種角度。
Direction angle: it can be made clockwise or clockwise, and it can be made into six angles: 0 ° 45 ° 90 ° 135 ° 180 ° 270 °.
整體結構：風機由葉輪、機殼、進風口傳動組、密封件、機座等組成。
Overall structure: the fan is composed of impeller, casing, air inlet drive group, seal, base, etc.
葉輪：葉形按新的高效前向風機理論進行設計。葉輪成形后經靜、動平衡校正，因此運轉平穩可靠。
Impeller: the blade shape is designed according to the new high-efficiency forward fan theory. After the impeller is formed, it is corrected by static and dynamic balance, so the operation is stable and reliable.
機殼：采用優質鋼板焊接成蝸形殼整體。
Casing: high quality steel plate is welded into a volute shell as a whole.
進風口：制作成收斂式流線形的整體結構，用螺栓與前蓋板組固定。
Air inlet: it is made into a convergent streamline integral structure and fixed with the front cover plate group with bolts.
用途：適合1t/h、 2t/h、3t/h、5t/h、7t/h、熔化率的化鐵爐鼓風性能要求。此風機還可作各種熔爐鍛冶爐的鼓風用，也適用于輸送空氣及無腐蝕性、不自然、不含有粘性物質的氣體。
Application: suitable for blast performance requirements of cupola with 1t / h, 2t / h, 3t / h, 5t / h, 7t / h and melting rate. The fan can also be used for blowing of various melting furnaces and forging furnaces, and is also suitable for conveying air and non corrosive, unnatural and non viscous gases.
適用環境：介質溫度不超過80°C，所含塵土及硬質顆粒不大于150mg/m3。
Applicable environment: the medium temperature shall not exceed 80 ° C, and the dust and hard particles contained shall not be greater than 150mg / m3.
※可特殊定做防爆式、防腐式、耐高溫結構。
※ explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
