CBS-71后傾離心風機
產品分類：后傾離心風機
點擊次數：1153 次
上架時間：2021-12-16 14:33
全國服務熱線：020-84913508 / 020-84918260
我要詢價詳細介紹

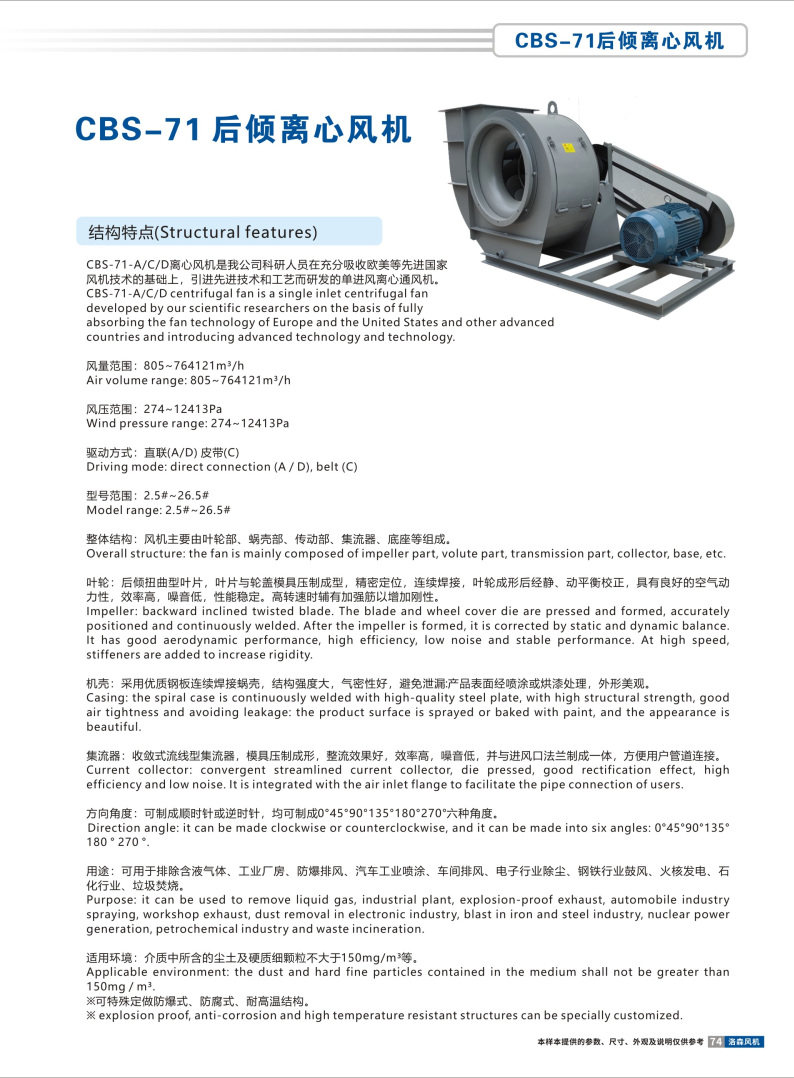

CBS-71后傾離心風機
CBS-71-A/C/D離心風機是我公司科研人員在充分吸收歐美等先進國家風機技術的基礎上，引進先進技術和工藝而研發的單進風離心通風機。
CBS-71-A/C/D centrifugal fan is a single inlet centrifugal fan developed by our scientific researchers on the basis of fully absorbing the fan technology of Europe and the United States and other advanced countries and introducing advanced technology and technology.

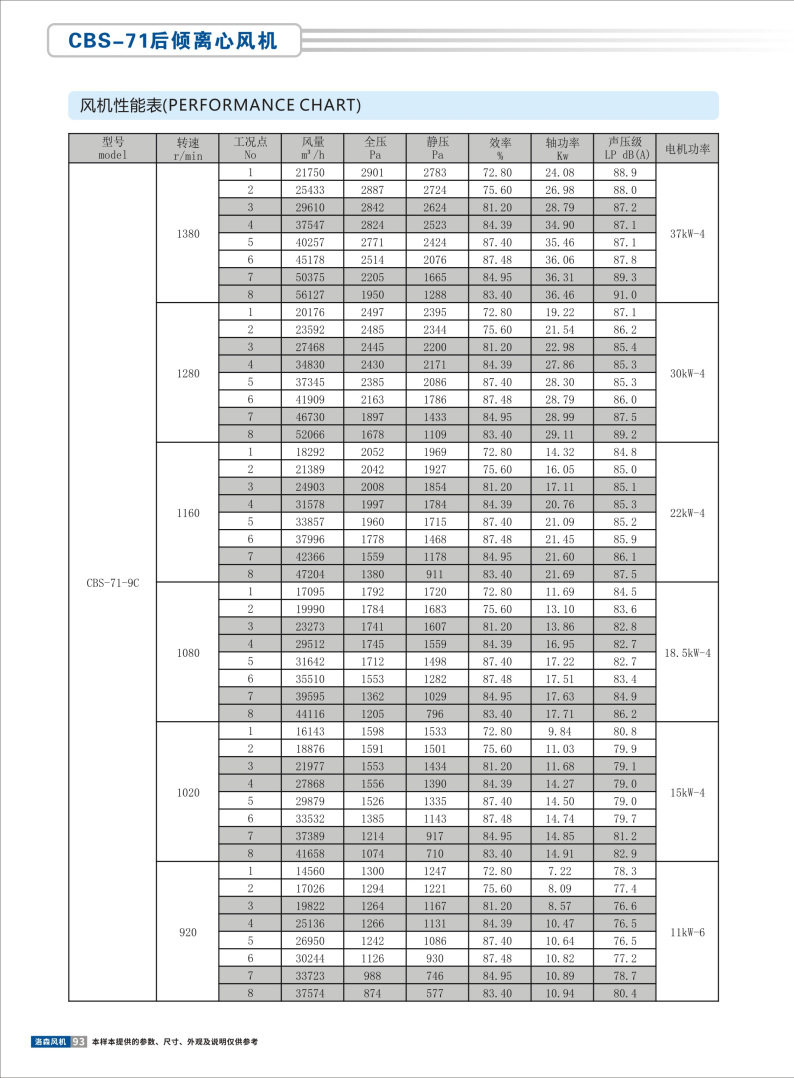

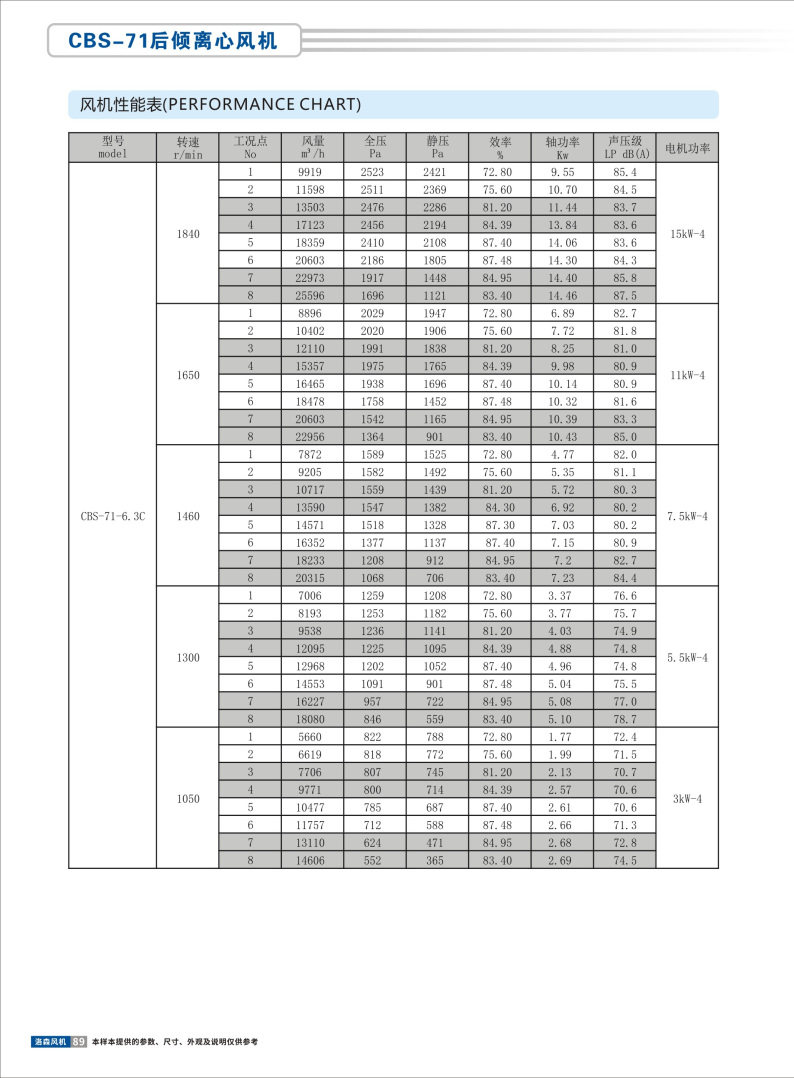

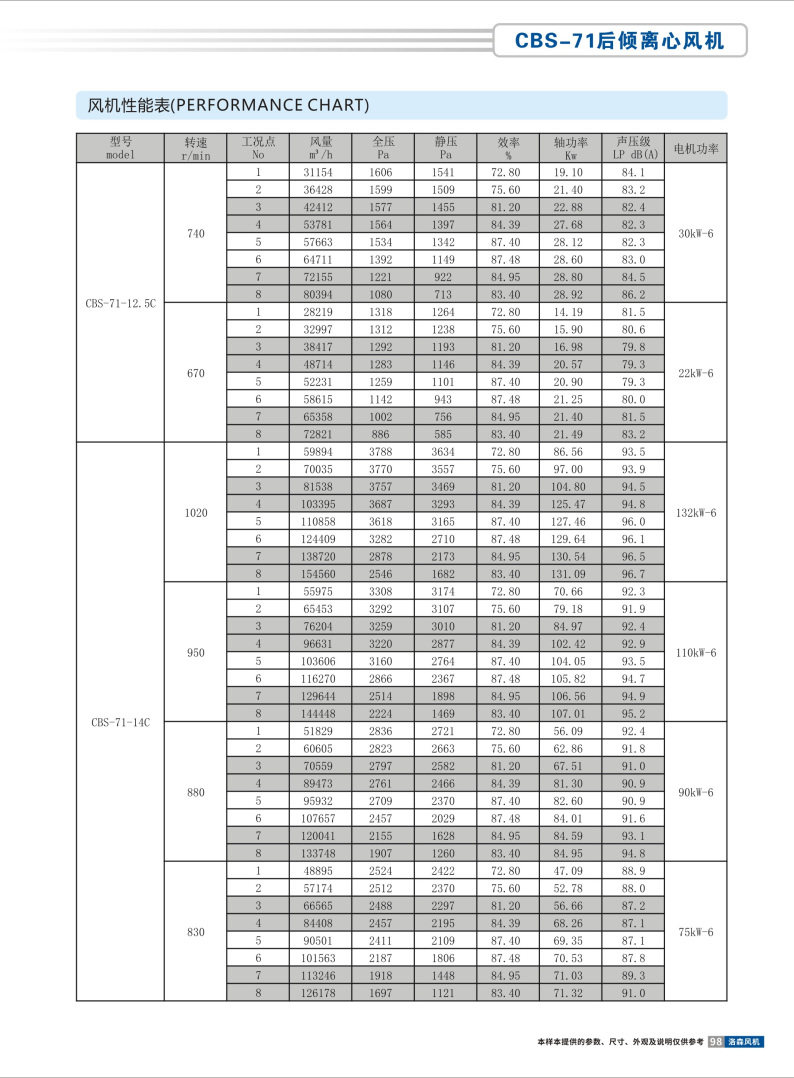

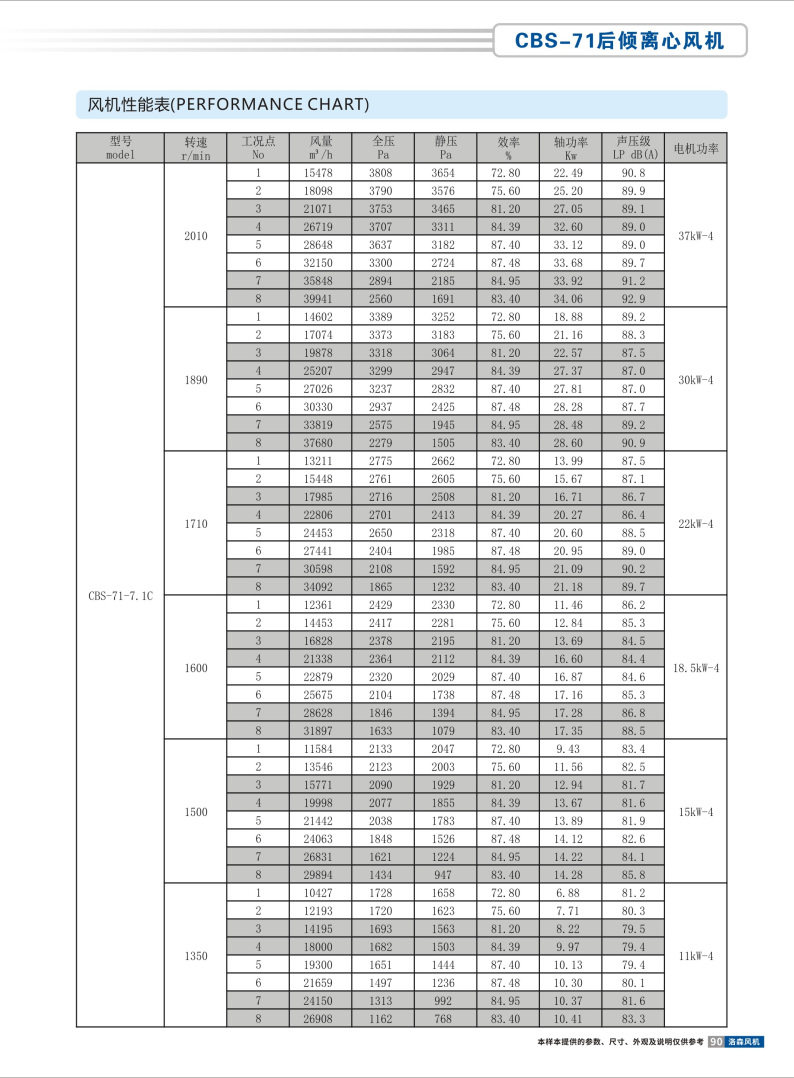

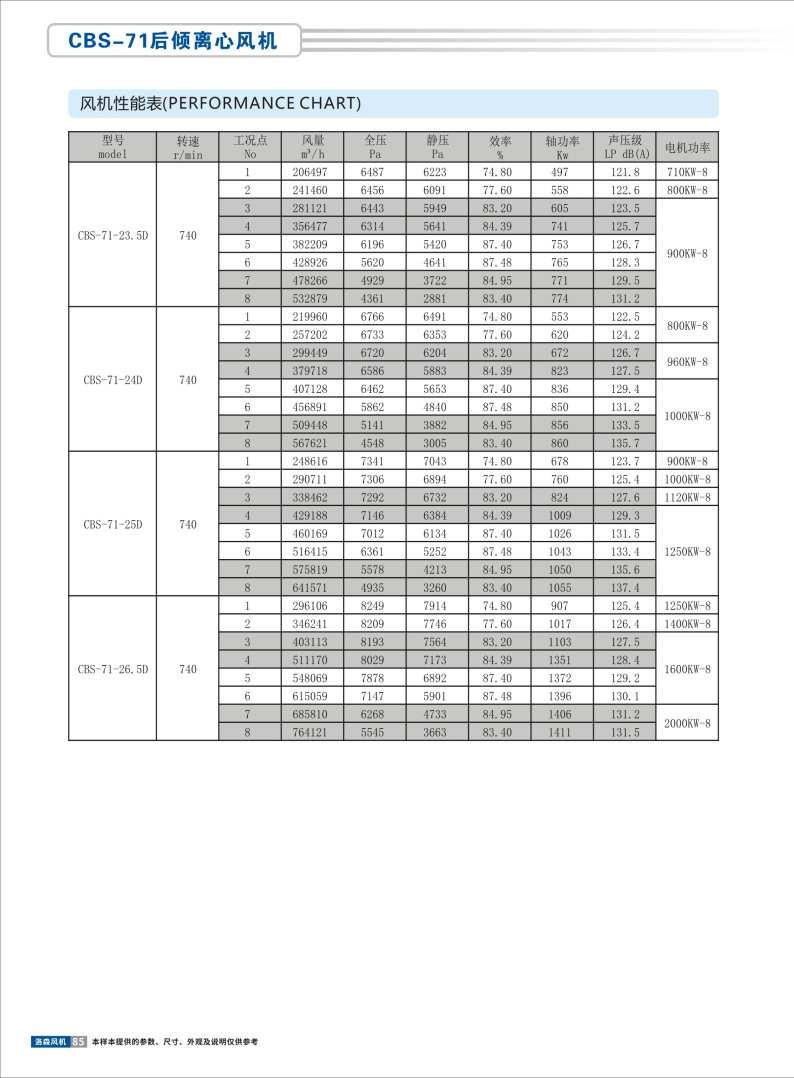

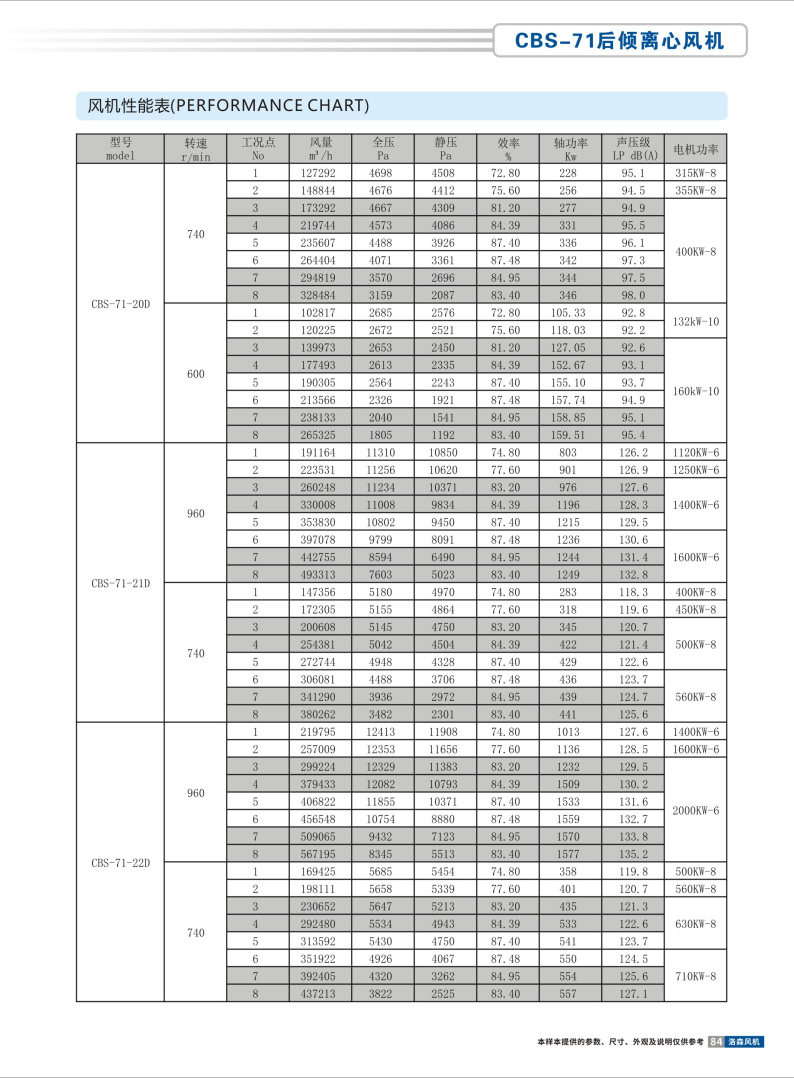

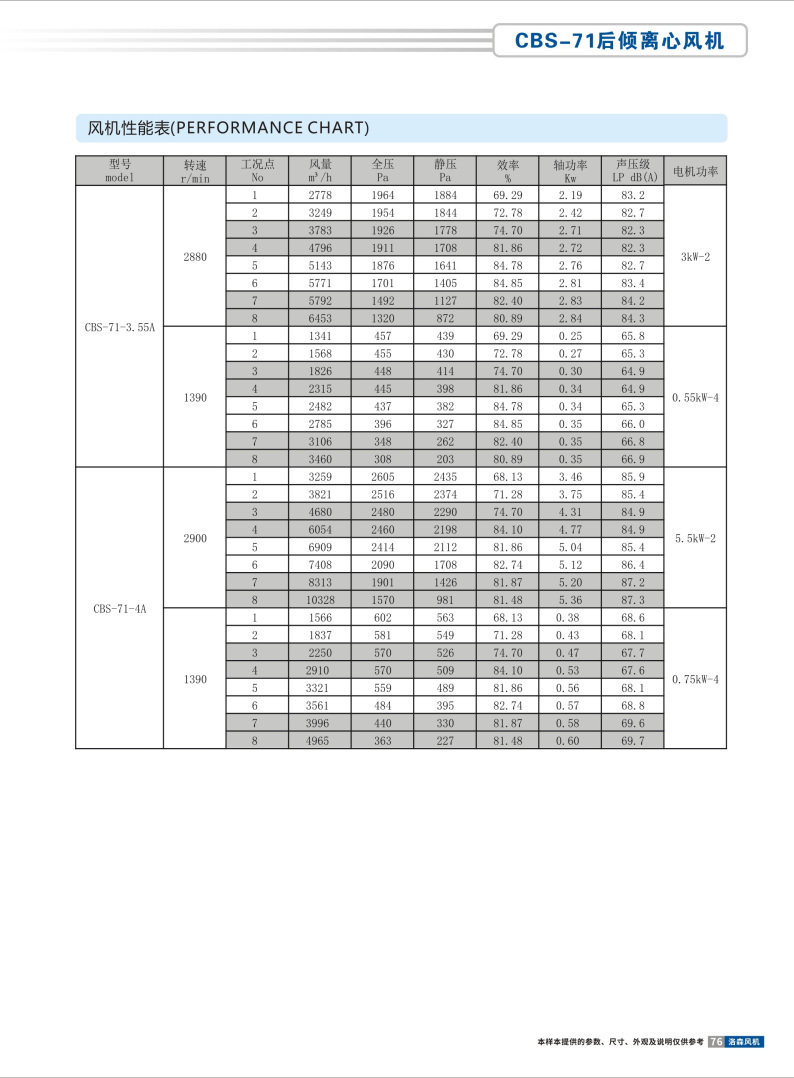

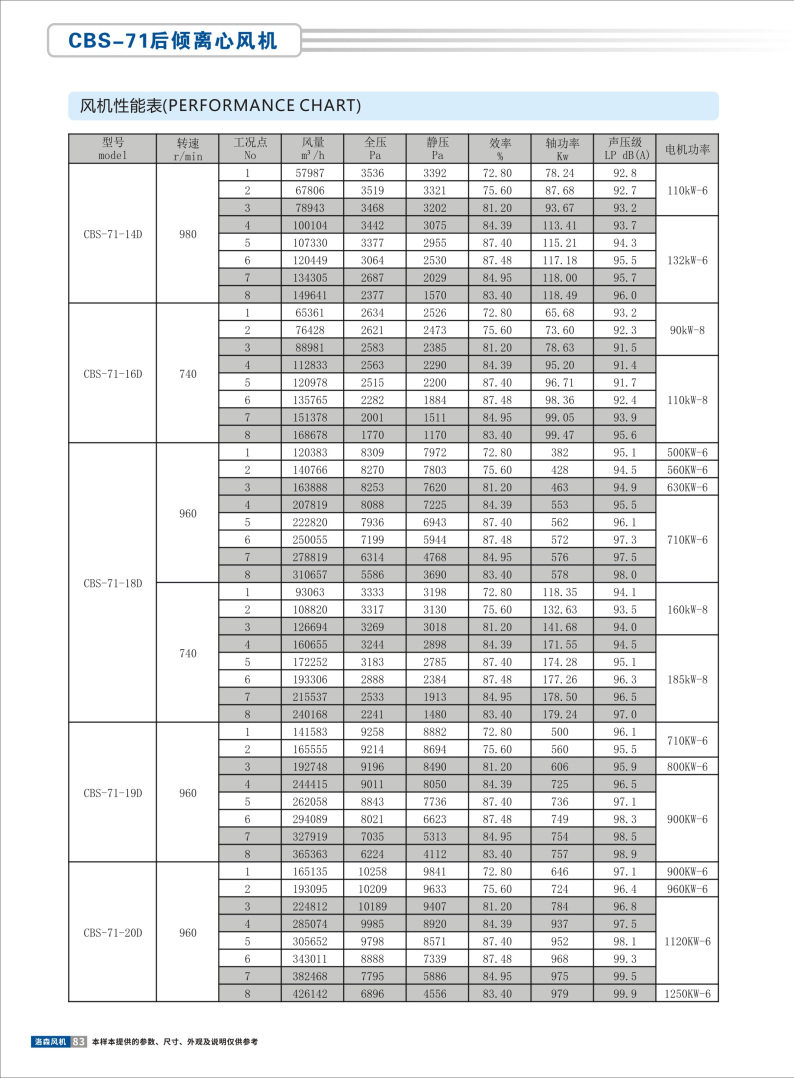

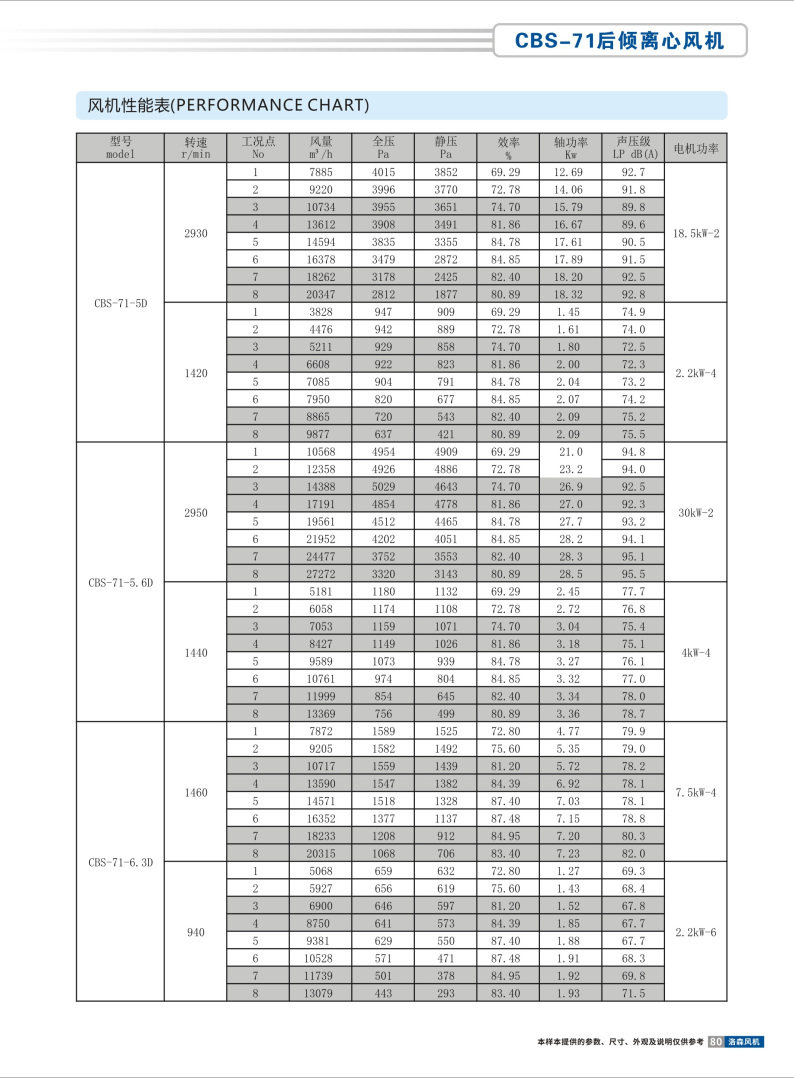

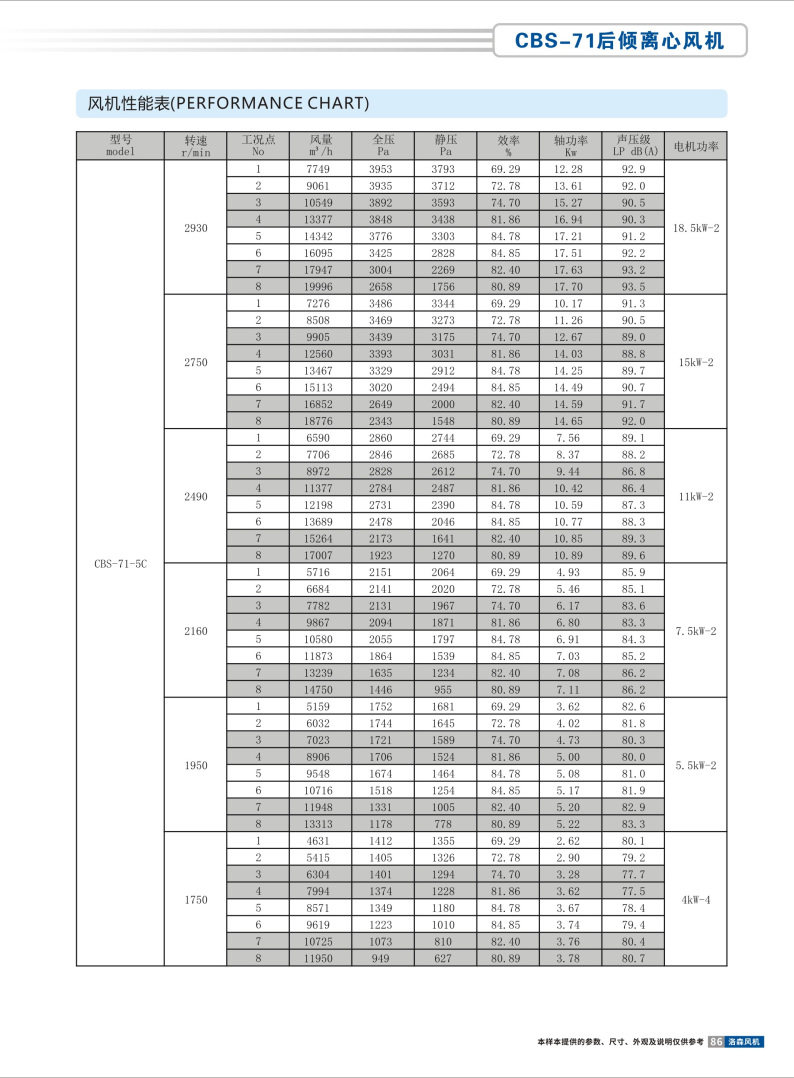

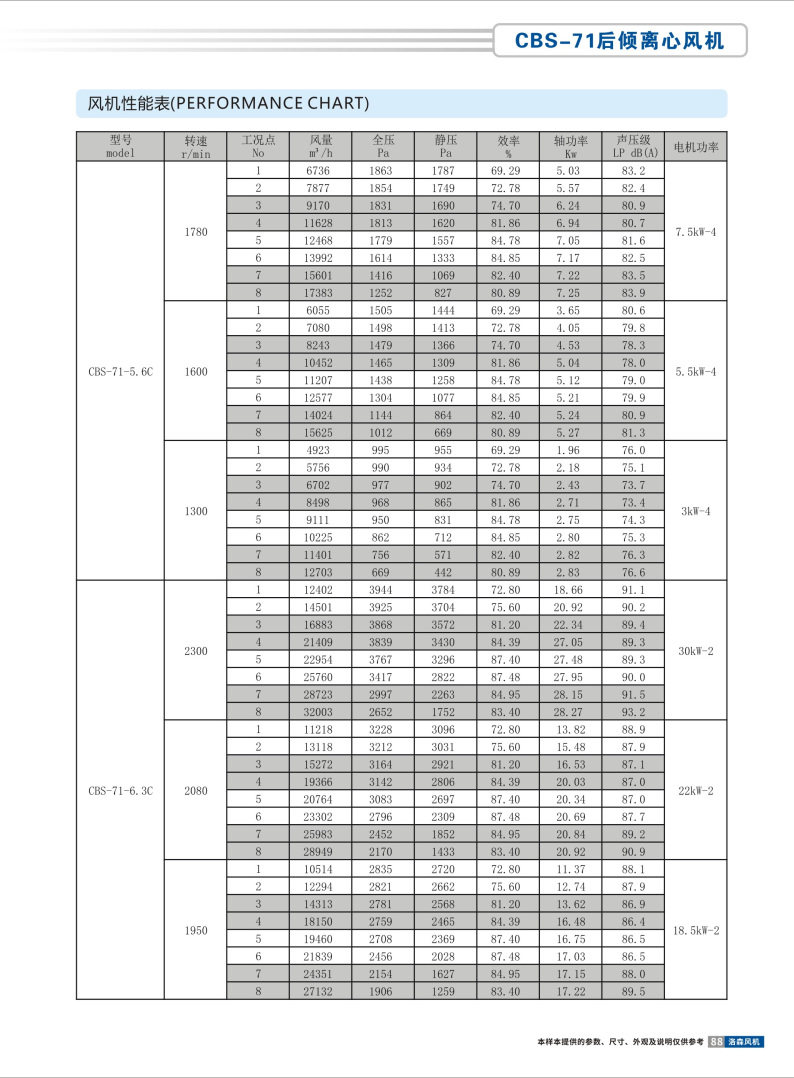

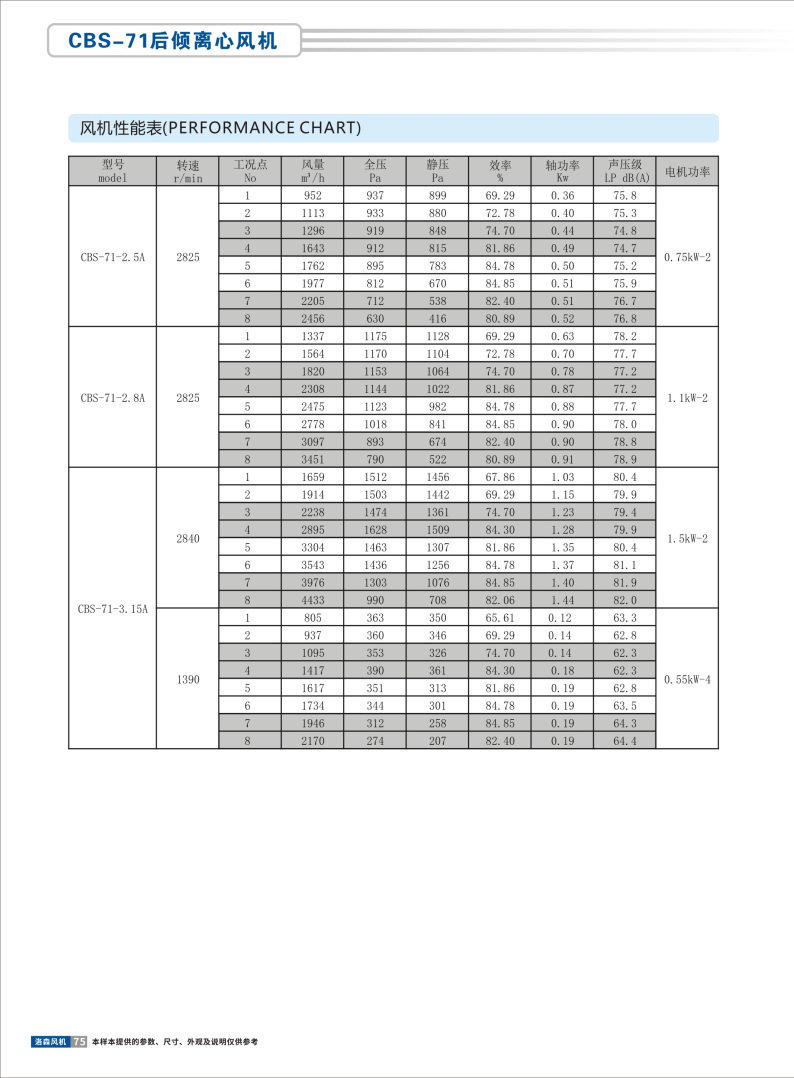

風量范圍：805~764121m3/h
Air volume range: 805~764121m3/h
風壓范圍：274~12413Pa
Wind pressure range: 274~12413Pa
驅動方式：直聯（A/D），皮帶（C）
Driving mode: direct connection (A / D), belt (C)
型號范圍：2.5#~26.5#
Model range: 2.5#~26.5#
整體結構：風機主要由葉輪部、蝸殼部、傳動部、集流器、底座等組成。
Overall structure: the fan is mainly composed of impeller part, volute part, transmission part, collector, base, etc.
葉輪：后傾扭曲型葉片，葉片與輪蓋模具壓制成型，精密定位，連續焊接，葉輪成形后經靜、動平衡校正，具有良好的空氣動力性，效率高，噪音低，性能穩定。高轉速時輔有加強筋以增加剛性。
Impeller: backward inclined twisted blade. The blade and wheel cover die are pressed and formed, accurately positioned and continuously welded. After the impeller is formed, it is corrected by static and dynamic balance. It has good aerodynamic performance, high efficiency, low noise and stable performance. At high speed, stiffeners are added to increase rigidity.
機殼：采用優質鋼板連續焊接蝸殼，結構強度大，氣密性好，避免泄漏:產品表面經噴涂或烘漆處理，外形美觀。
Casing: the spiral case is continuously welded with high-quality steel plate, with high structural strength, good air tightness and avoiding leakage: the product surface is sprayed or baked with paint, and the appearance is beautiful.
集流器：收斂式流線型集流器，模具壓制成形，整流效果好，效率高，噪音低，并與進風口法蘭制成一體，方便用戶管道連接。
Current collector: convergent streamlined current collector, die pressed, good rectification effect, high efficiency and low noise. It is integrated with the air inlet flange to facilitate the pipe connection of users.
方向角度：可制成順時針或逆時針，均可制成0°45°90°135°180°270°六種角度。
Direction angle: it can be made clockwise or counterclockwise, and it can be made into six angles: 0 ° 45 ° 90 ° 135 ° 180 ° 270 °.
用途：可用于排除含液氣體、工業廠房、防爆排風、汽車工業噴涂、車間排風、電子行業除塵、鋼鐵行業鼓風、火核發電、石化行業、垃圾焚燒。
Purpose: it can be used to remove liquid gas, industrial plant, explosion-proof exhaust, automobile industry spraying, workshop exhaust, dust removal in electronic industry, blast in iron and steel industry, nuclear power generation, petrochemical industry and waste incineration.
適用環境：介質中所含的塵土及硬質細顆粒不大于150mg/m3等。
Applicable environment: the dust and hard fine particles contained in the medium shall not be greater than 150mg / m3
※可特殊定做防爆式、防腐式、耐高溫結構。
※ explosion proof, anti-corrosion and high temperature resistant structures can be specially customized.
